Grain Shell Solar Mobile Dryers
2ton/4ton capacity collapsible dryers, perfect for protecting crops during rainy seasons, powered entirely by solar energy.
Drying of grains in problematic in rainy season in India.
Where uneven rainfall can occur even during the dry season.
Sun drying a high risk for grain spoilage. When the time is too short to pile and cover the grains in case of sudden rainfall.
This Problem is solution with solar mobile dryer, as the water proof structure protect the grains even under rainfall.
The Solar mobile dryer is easy to transport and can be installed with in 30 Minutes.
The simple design is easy to maintain and operate as it is made of plastic material.
The tunnel does not need a sub structure as it is stabilized adequately from pressure created by DC Fans.
The raw material to be dried spread on the drying floor mixed with rake.
Grain Shell Solar Mobile Dryer SMD2000/ SMD 4000 :

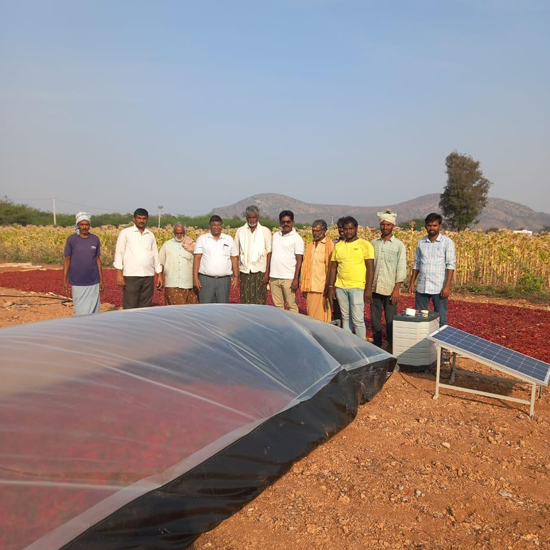

The grain shell Solar Mobile Dryer (SMD2000/SMD4000) is a collapsible, tunnel type dryer with 2 ton (2000Kg)/4 ton (4000kg) drying capacity designed to protect the agricultural commodity from uneven / sudden rains during drying, and to prevent spillage and contamination damage.
Drying efficiency is dependent on the solar radiation, relative humidity of the ambient air, and moisture content of concerned agricultural commodity. The Solar Mobile Dryer consists of semi transparent cover made of UV Resistant Poly film/cross laminated film connected to the black fabric coated PVC film by a high strength zipper.
Through the semi transparent top cover, solar radiation enter the drying chamber and heats of the agricultural commodity being dried.
Moisture in the commodity is evaporated and pushed by the DC Fans out from the drying chamber.
The Solar Mobile Dryer SMD2000/SMD4000 drying possible even during unexpected rain conditions. It can dry grains, seeds, nuts, coffee beans, Cocoa beans, spices, oil seeds at an average drying rate of 0.5 to 1.0% per hour on grains.
However, during full sunny condition drying time is about 24 hours on a moisture content reduce 28 to 14% .
It’s a multi crop dryer
The Solar Mobile Dryer SMD2000/SMD4000 which is operates purely on solar power to dry the commodity and run the DC Fans.
There is a rake mixer that can be used for mixing.
Features:
- Collapsible dryer can be installed on any flat surface.
- Its multi crop dryer.
- Protects the commodity from birds, animals, fowls, dust.
- Protect the commodity from unhygienic and hazardous contaminants.
- Designed to address the effect of climate change in Indian conditions.
- Solar Mobile Dryer SMD2000/SMD4000 is a green technology dryer does not require fuels or electricity.
- It’s cheaper than mechanical dryers.
| Solar Mobile Dryer SMD2000 Specifications: | Solar Mobile SMDDryer 4000 Specifications: |
|---|---|
| Top Cover: UV Resistant Poly Film/Semi transparent UV stabilized Cross laminated film. | Top Cover: UV Resistant Poly Film/Semi transparent UV stabilized Cross laminated film. |
| Drying floor: Black PVC fabric coated sheet. | Drying floor: Black PVC fabric coated sheet. |
| Zipper: High strength zipper. | Zipper: High strength zipper. |
| Rake Mixer: Metalic/Plastic rake with handle. | Rake Mixer: Metalic/Plastic rake with handle. |
| DC Fan Stand: MS L Angles. | DC Fan Stand: MS L Angles. |
| Exhaust Stand: MS L Angles. | Exhaust Stand: MS L Angles. |
| Solar Panel Stand: MS L Angles. | Solar Panel Stand: MS L Angles. |
| Fan: 12V DC Fans. | Fan: 12V DC Fans. |
| Solar Panel: 120 to 180 Watts. | Solar Panel: 120 to 180 Watts. |
| Battery: Lead Acid Maintenance Free. | Battery: Lead Acid Maintenance Free. |
| Connectors/Terminals: Alligator clip. | Connectors/Terminals: Alligator clip. |
| Solar Charge Controller Battery Stand: Plastic Stand | Solar Charge Controller Battery Stand: Plastic Stand |
| Dimensions: 16.0x3.0 (16x3) meters | Dimensions: 25.0x3.0(25x3) meters |
| Drying Area: m2 = 48 m2 | Drying Area: m2 = 75 m2 |
| Capacity: 2000Kg (2 ton) | Capacity: 4000Kg (4 ton) |
